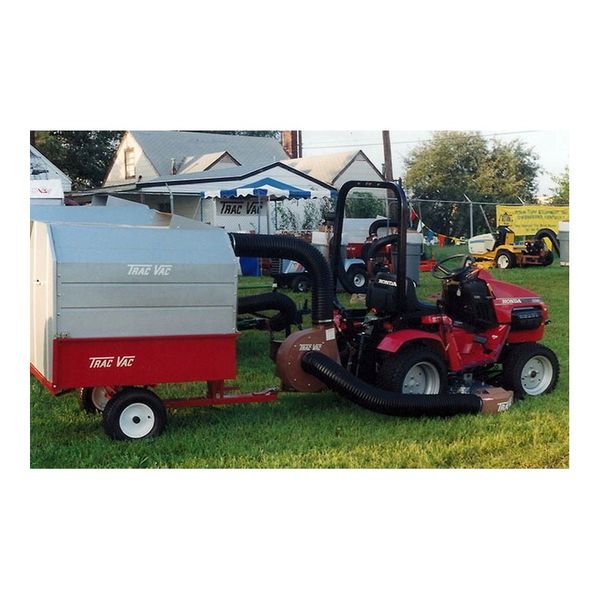

Trac-Vac 854 PTO-Driven Leaf Vacuum
Trac-Vac 854 PTO-Driven Leaf Vacuum. Review the model specifications, selected options and included equipment below before ordering.
Product Overview & Included Features
Review the selected configuration and included components before ordering.
High-Capacity Debris Collection for Category 1 3-Point Hitches
The Trac-Vac Model 854 is a heavy-duty, tractor-powered vacuum system engineered for compact tractors with a Category 1 3-point hitch. By utilizing your tractor's existing PTO power, the 854 provides professional-grade suction without the need for an auxiliary engine. With a massive 44-bushel capacity and rugged all-steel construction, it is the perfect solution for maintaining large estates, campuses, and commercial properties.
Key Features
-
PTO-Driven Efficiency: Designed to run on a standard 540 RPM rear PTO. It features a 2-to-1 gearbox coupled with a belt-drive system, producing a powerful turbine speed of approximately 3800 RPM for maximum vacuum pressure.
-
Large 44-Bushel Collection: Includes an 18-cubic-foot heavy-duty dump cart with a 20-gauge powder-coated steel cover, providing a total collection volume of approximately 50 cubic feet (44 bushels).
-
Category 1 3-Point Mounting: Specifically engineered to mount on Category 1 3-point hitches. It is supported by stabilizer arms that free up the tractor’s lift arms to raise and lower the mower deck independently.
-
Quiet & Industrial Turbine: Features a six-bladed forward-curve turbine that mulches debris for superior compaction while maintaining an operator-friendly noise level of approximately 70 decibels.
-
Clog-Resistant Design: Utilizes large 8-inch diameter intake and exhaust hoses. This larger diameter is specifically recommended for mower decks of 54" or larger to move wet leaves and heavy grass clippings smoothly.
-
Tapered Steel Dump Cart: The cart body is tapered four inches from front to back, ensuring that collected material slides out effortlessly during dumping with minimal risk of clogging.
-
Extreme Durability: The all-steel cart cover is powder-coated for long-term rust resistance. For the most demanding environments, an Extreme Cart upgrade is available with a reinforced, heavier steel body.
-
American Quality: Proudly made in the USA since 1955, ensuring high-quality craftsmanship and reliable replacement parts.
Technical Specifications
| Feature | Details |
| Power Source | Tractor Rear PTO (Min. 13.5HP at PTO) |
| PTO Speed | 540 RPM |
| Turbine Speed | ~3800 RPM (2-to-1 Gearbox) |
| Cart Capacity | 18 Cubic Foot (Tapered Steel) |
| Total Collection | 44 Bushels / 50 Cubic Feet |
| Hose Diameter | 8" Intake and 8" Exhaust |
| Mounting | Category 1 3-Point Hitch |
| Noise Level | ~70 Decibels |
